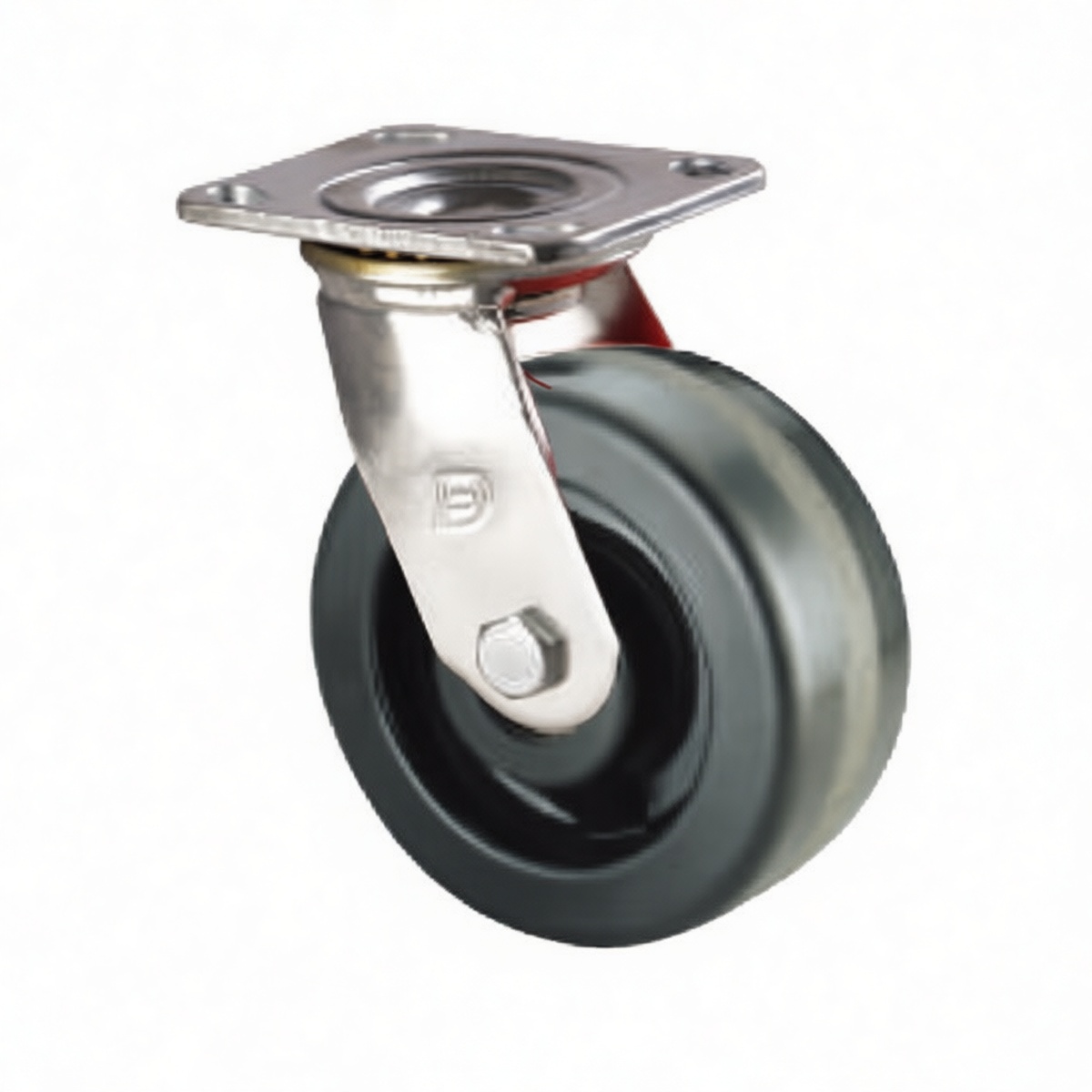

8" Phenolic Heavy Duty Swivel Caster Plate Mount 1190 lbs High Temp

Overview

This industrial-grade swivel caster is engineered to deliver exceptional performance in demanding environments where extreme heat and heavy loads are present. Designed with a robust phenolic resin construction, the unit provides superior resistance to thermal degradation, chemical exposure, and physical impact. The 8-inch wheel diameter facilitates smooth rolling over uneven surfaces while maintaining stability under maximum load conditions. With a plate mount configuration, this caster ensures secure attachment to heavy machinery, carts, and transport equipment, offering reliable 360-degree maneuverability without compromising structural integrity. It is an ideal solution for facilities requiring durable mobility components that can withstand rigorous operational stresses without deformation or failure.

Key Features

High-temperature phenolic wheel resists heat up to 500°F Load capacity rated at 1,190 lbs per caster Full 360-degree swivel action for precise maneuverability Impact-resistant phenolic resin construction throughout Chemical resistant to oils, solvents, and most industrial fluids Non-marking wheel surface protects sensitive flooring Heavy-duty ball bearing raceway for smooth rotation Plate mount design ensures rigid and secure installation

Specifications

Load Capacity: 1,190 lbs Wheel Diameter: 7.9 in Overall Installation Height: 9.4 in Mounting Plate Dimensions: 9.4 in x 4.5 in Wheel Material: Phenolic Resin Body Material: Phenolic Resin Mounting Type: Plate Mount Rotation: Swivel (360 degrees) Unit Packaging: Single unit

Applications

Foundry and metal casting operations Glass manufacturing and handling facilities Industrial baking and curing ovens Chemical processing plants Heavy machinery transport systems Automotive assembly lines Welding shops and fabrication centers High-temperature warehouse logistics This caster is specifically developed to address the challenges of moving substantial weights in thermally aggressive settings. The phenolic material choice eliminates the risk of melting or softening that commonly affects rubber or polyurethane wheels when exposed to elevated temperatures. Its rigid composition also prevents flat-spotting when stationary under heavy loads, ensuring immediate rollability when motion is required. The precision-engineered swivel mechanism reduces friction, allowing operators to navigate tight corners and complex pathways with minimal effort. Whether integrated into new equipment designs or used as a replacement component for existing fleets, this unit delivers consistent reliability. The standardized plate dimensions allow for straightforward retrofitting onto a wide variety of industrial frames and platforms. By combining high load-bearing capabilities with specialized thermal resistance, this product supports continuous operation in sectors where equipment failure is not an option.
