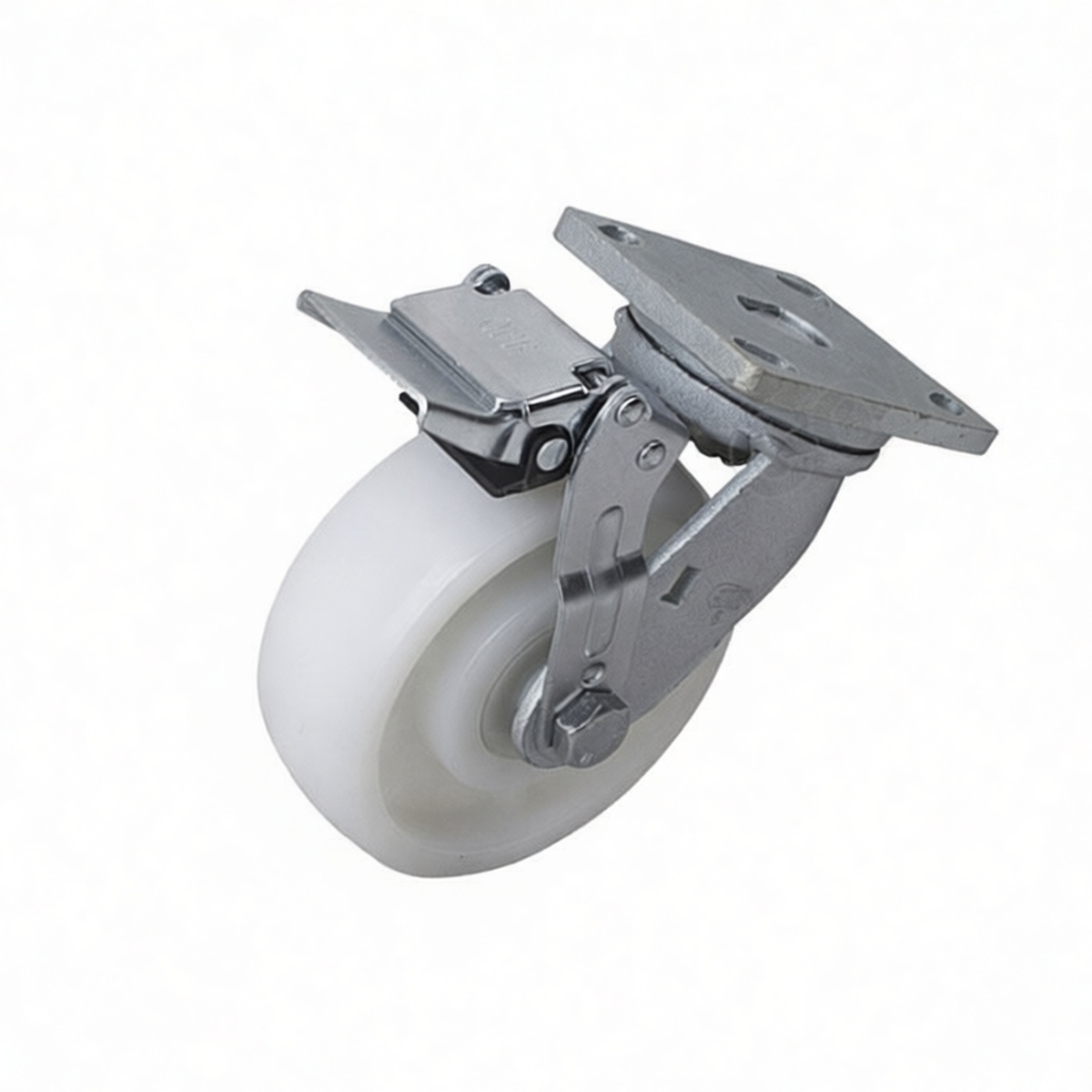

6 in Nylon Plate Mount Caster 1870 lbs Load Heavy Duty Industrial

Overview

This heavy-duty industrial caster is engineered to support substantial loads in demanding commercial and manufacturing environments. Featuring a robust 6-inch wheel constructed from high-strength nylon, the unit delivers exceptional durability against impact, abrasion, and chemical exposure. The plate mount design ensures secure attachment to heavy machinery, carts, and transport equipment, providing a stable foundation for moving assets weighing up to 1,870 lbs per caster. Its precision swivel mechanism facilitates smooth maneuverability even under maximum load conditions, reducing operator fatigue and enhancing workflow efficiency.

Key Features

High-strength nylon wheel construction for superior wear resistance Load capacity rated at 1,870 lbs per unit Precision ball-bearing swivel raceway for effortless 360-degree rotation Impact-resistant tread suitable for uneven or rough floor surfaces Corrosion-resistant hardware components for extended service life Low maintenance design requiring minimal lubrication Flat top profile optimizes vertical clearance for low-profile equipment

Specifications

Load Capacity: 1,870 lbs Wheel Diameter: 6 inches Overall Installation Height: 7.7 inches Mounting Plate Length: 4.6 inches Mounting Plate Width: 3.9 inches Wheel Material: High-Strength Nylon Mounting Type: Top Plate Swivel Radius: 3.6 inches Unit Weight: Approximately 8.5 lbs Pack Size: 1 unit

Applications

Heavy machinery transportation and positioning Industrial assembly line logistics Warehouse pallet jack upgrades Manufacturing plant material handling Aerospace component dolly systems Automotive production equipment movement Foundry and metalworking facility transport Large-scale printing press relocation Performance Notes The high-density nylon formulation provides a balance between load-bearing rigidity and floor protection, making it suitable for use on concrete, epoxy, and sealed industrial flooring. Unlike softer rubber compounds, this material resists deformation under static loads over long periods, preventing flat-spotting that can impede movement. The mounting plate features four pre-drilled holes aligned with standard industrial bolt patterns, allowing for rapid installation using common hardware tools. Operators should ensure the mounting surface is clean, flat, and structurally sound to maintain the rated load capacity. Regular inspection of the swivel mechanism and wheel tread is recommended after every 500 hours of operation or immediately following exposure to extreme impacts. This caster performs optimally in temperatures ranging from -20°F to 180°F, maintaining structural integrity in both cold storage facilities and heated production zones.
