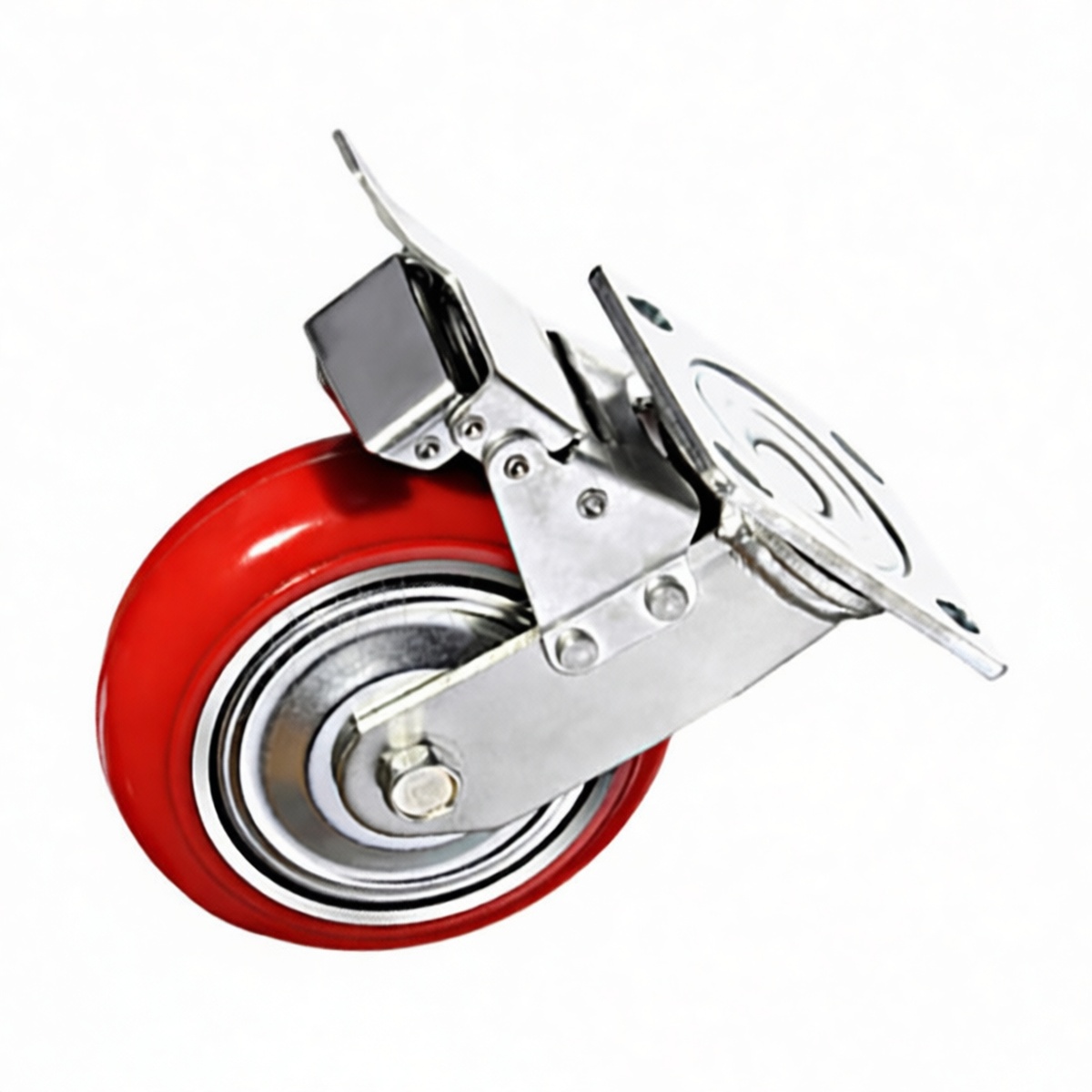

5 in Polyurethane Heavy Duty Iron Caster with Brake, 836 lbs Load, Plate Mount, Pkg Qty 2

Overview

This heavy-duty caster assembly is engineered for rigorous industrial applications requiring superior load-bearing capacity and floor protection. Designed to support static loads up to 836 lbs, the unit features a robust iron core encased in a high-grade polyurethane tread. The combination of materials delivers exceptional durability while significantly reducing noise and preventing damage to sensitive flooring surfaces. An integrated braking mechanism provides reliable locking power, ensuring equipment remains securely positioned on inclines or uneven terrain. The plate mount configuration allows for straightforward installation onto machinery, transport carts, and heavy shelving units without the need for specialized tools.

Key Features

Static load capacity rated at 836 lbs per wheel High-resilience polyurethane tread minimizes floor marking Integrated foot-activated brake for secure positioning Robust iron core construction for maximum structural integrity Low rolling resistance reduces operator fatigue during manual pushing Noise-reducing wheel design suitable for indoor facilities Corrosion-resistant finish extends service life in harsh environments

Specifications

Wheel Diameter: 4.9 in Wheel Width: 2.0 in Overall Mounting Height: 6.5 in Mounting Plate Dimensions: 4.5 x 3.9 in Core Material: Cast Iron Tread Material: Polyurethane Mounting Type: Top Plate Brake Type: Integrated Side Lock Load Capacity: 836 lbs Package Quantity: 2 units

Applications

Ideal for material handling carts in manufacturing plants Suitable for heavy machinery relocation and positioning Effective for assembly line workstations requiring mobility Recommended for warehouse logistics and distribution centers Appropriate for food processing equipment where floor hygiene is critical Used in automotive repair shops for tool chests and engine stands Perfect for hospital laundry carts and institutional cleaning equipment The precise engineering of this caster ensures consistent performance under continuous operation. The 4.9-inch wheel diameter offers an optimal balance between maneuverability and the ability to roll over minor debris or floor imperfections. The 2.0-inch wheel width distributes weight evenly, further protecting epoxy or polished concrete floors from indentation. Installation is facilitated by the standard 4.5 by 3.9-inch top plate, which aligns with common industrial mounting patterns. The total height of 6.5 inches provides adequate ground clearance while maintaining a low center of gravity for loaded equipment. This product is sold in packages of two units to facilitate paired replacement or new equipment builds.
